| Description |
| The TaylorMade r7 CGB Max irons feature inverted cone construction, the same technology that made TaylorMade drivers successful. 100% CNC-milled, high strength 455 stainless steel clubface offers the highest allowable COR for maximum ball speed and the largest clubface area of any TaylorMade iron to date. The wide sole, tungsten weighting, and hollow topline frame allows weight to be placed deeper and back away from the face and allows for more forgiveness and delivers the highest launch for max carry. |
| |
| Club Technology |
 |
| |

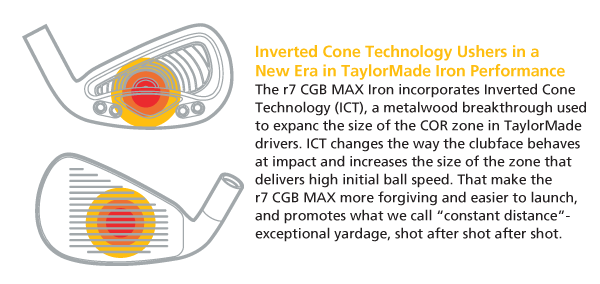

| Feature | Advantage | Benefit | | Enhanced Inverted Cone Technology (ICT) | Maximizes The COR Zone delivering the highest ball speed over a larger face area | Delivers longer carry and distance on mis-hits | | 100% CNC-milled, high strength, 455 stainless steel clubface | Offers the highest allowable COR for maximum ball speed | Delivers maxium carry and distance | | Hollow Top-line frame and wide sole | allows for repositioning 17 grams of mass lower and deeper back away from the face in the clubhead | Delivers highest launch angle for maximum carry | | Largest iron clubhead with four tungsten cartidges positioned heel and toe | Delivers high MOI (moment of Intertia) | Increases forgiveness on mis-hits | | Hyperlight graphite and T-step steel shafts | Promotes maximum swing speed through the use of light weight material | Delivers maximum distance | |
| |
| Club Specifications |
| |
| Iron | 3 | 4 | 5 | 6 | 7 | 8 | 9 | PW | AW | SW | LW | | Head Properties | | | Loft | 19° | 21° | 23° | 26° | 30° | 34° | 39° | 44° | 49° | 54° | 59° | | Lie Angle | 61° | 61.5° | 62° | 62.5° | 63° | 63.5° | 64° | 64.5° | 64.5° | 64.5° | 64.5° | | Offset (mm) | 6.0 | 5.7 | 5.3 | 5.0 | 4.7 | 4.3 | 4.0 | 3.7 | 3.7 | 1.0 | 1.0 | | | | Club Properties | | | Club Length, Graphite | 39" | 38.5" | 38" | 37.5" | 37" | 36.5" | 36" | 35.75" | 35.75" | 35.5" | 35.25" | | Club Length, Steel | 38.75" | 38.25" | 37.75" | 37.25" | 36.75" | 36.25" | 35.75" | 35.5" | 35.5" | 35.25" | 35" | | Club swing weight, Graphite | D0 | D0 | D0 | D0 | D0 | D0 | D0 | D1 | D1 | D3 | D4 | | Club swing weight, Steel | D1 | D1 | D1 | D1 | D1 | D1 | D1 | D2 | D2 | D4 | D5 | | | | Shaft Properties | TaylorMade R7-55 | R7 T-Step Ascending Mass | | Shaft Tip | parallel tip | parallel tip | | | Shaft Weight | 55g | Variable | | |
| |
